Motorcycle led headlight Hd-Style Type 3 7"

7-inch HD-STYLE TYPE 3 LED headlamp, metal housing with insert and cover, glass transparent, round, bottom-mounted, E-approved. Available in various colors.

HIGHSIDER

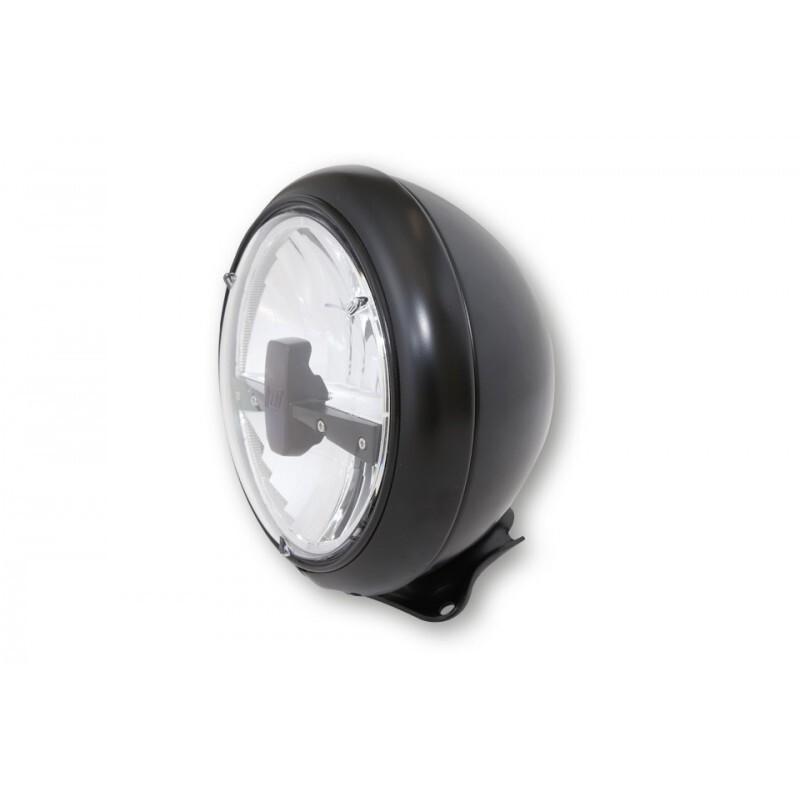

LED headlight HIGHSIDER 7 inch HD-STYLE TYPE 3 for bottom mounting

Elegant, innovative Power LED headlight in purist design with position light function and round glass transparent. The metal housing is available in black or chrome, the bezel and asymmetrical insert - only approved for right-hand traffic - are chrome-plated, E-approved.

Pure joie - give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series make it a point highlight in every case!

Dimensions:

Housing diameter: 220 mm

Headlight insert diameter: 178 mm

Depth: 155 mm

Distance between mounting holes on bracket (middle - middle): 65 mm

Connections to reflector in headlight housing:

black cable = ground (-)

red cable = low beam (+), power consumption: at 12 volts 18 watts, approx. 1132 lumens.

White cable = high beam (+), power consumption: at 12 volts 30 watts, approx. 1770 lumens.

Brown cable = position light (+), power consumption: at 12 volts 0.7 watts.

Available in various colors.

Scope of delivery: 1 piece with counter-connector (plug) with 210 mm cable, for H4 halogen bulbs, connections:

Green cable = ground (-)

Blue = high beam (+)

White cable = low beam (+)

Note 1:

Asymmetrical use, approved for right-hand traffic only.

Note 2:

If this headlamp is installed on a BMW R nine T 2017, additional resistance with item number 207-032 is required.

Optional chrome-plated replacement insert

: part number: 226-014
