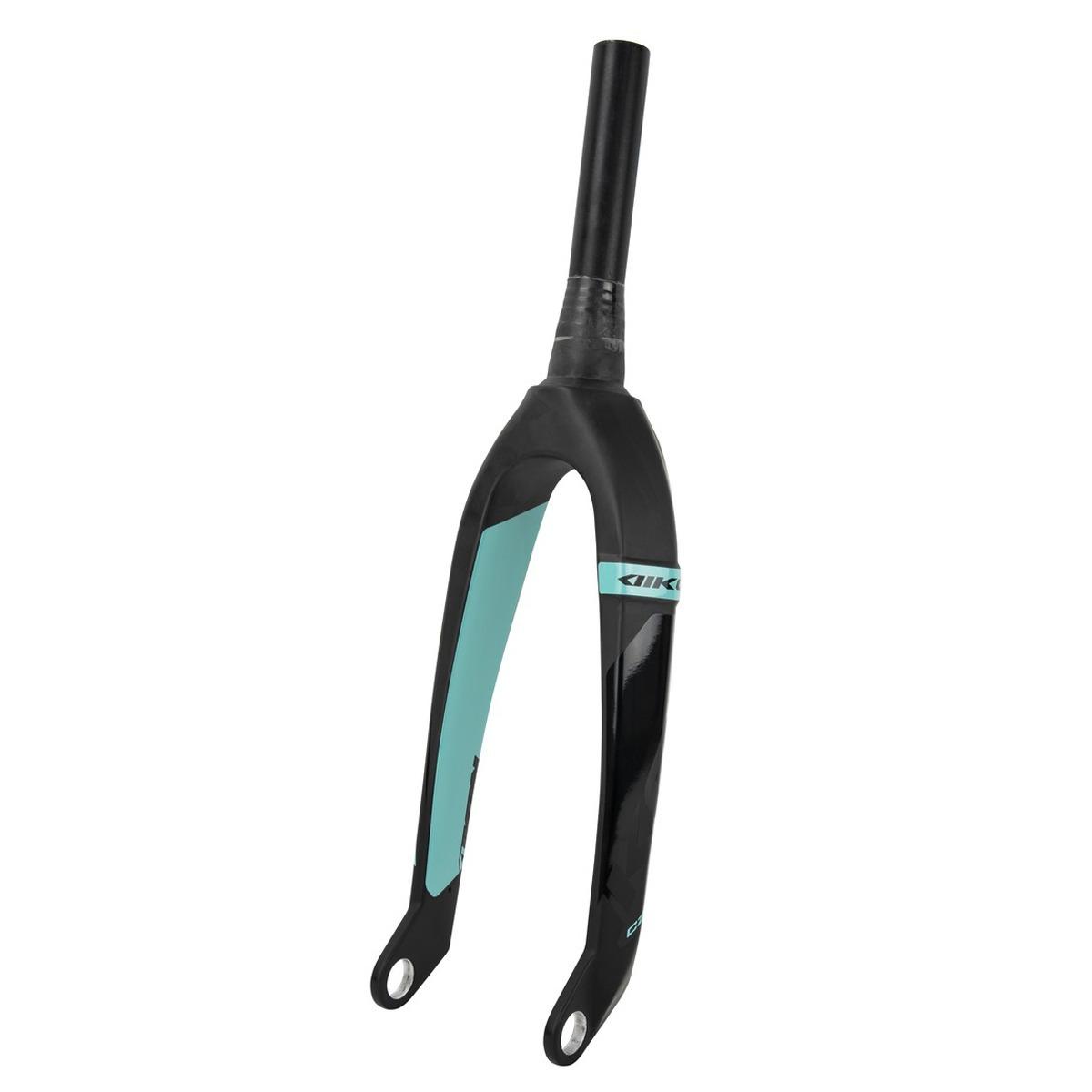

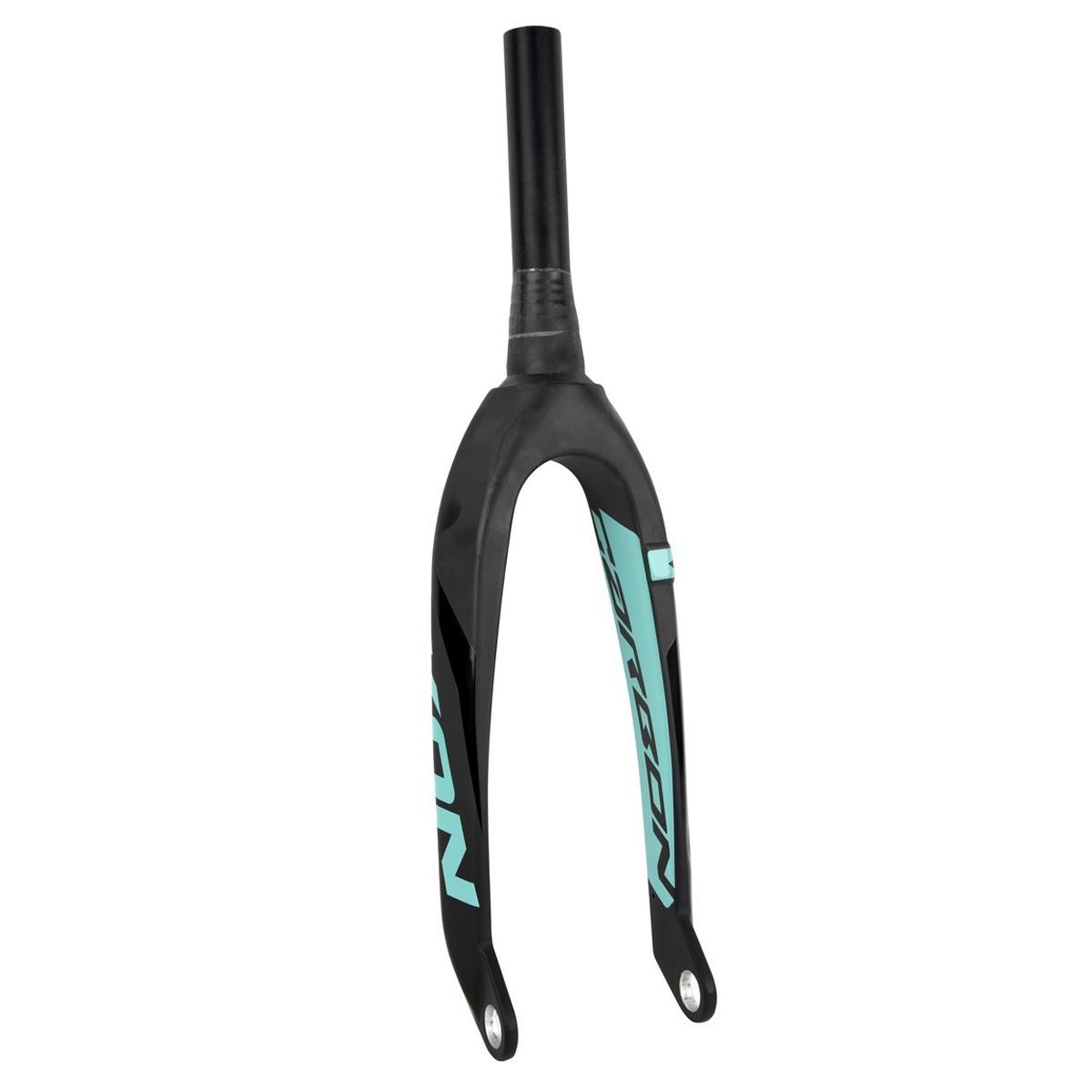

Ikon Fork

Tested and approved by riders at team CHASE, the IKON Tapered Pro carbon fork is designed to meet the demands of BMX racing with optimum aerodynamics thanks to a small rear fin under the head tube and its streamlined arms. Constructed in Toray UD carbon, elle features a solid, reliable 7075 aluminum steerer tube and CNC-machined 6061 aluminum dropouts. Elle is offered in Tapered version for use on frames with 1-1/8" top and 1.5" bottom tapered headtubes for riders riding Pro 20" frames in 20mm front axle adaptable to 10mm axle thanks to axle adapters sold separately.

FEATURES :

• 20" UD carbon monocoque fork
• Aluminium 7075 tapered steerer tube top 1-1/8'' - bottom 1.5'' - 6mm thick
• Integral fork ring for lower 45-degree bearing - no additional fork ring required
• CNC-machined 6061 aluminum dropouts
• Axis: 20mm
• Offset: 31mm
• Pivot height: 173mm
• Axle to base height: 305mm
• Weight: 626g (without top cap)
• Sold with top cap

COMPATIBILITY :

• For 20" frames with integrated tapered head tube Top 1-1/8" - Bottom 1.5
• For 20" wheels with 20mm axle
