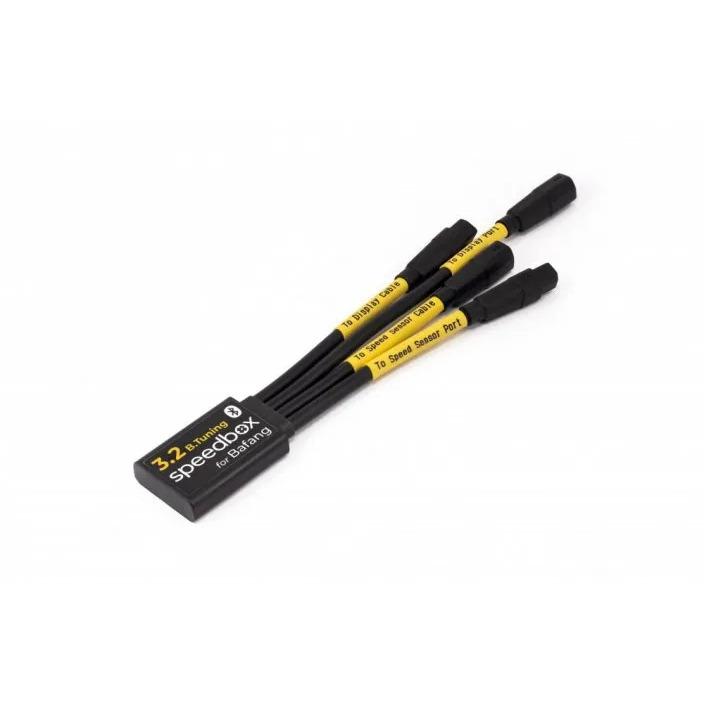

Speed limiter 3.2 B.Tunning Bafang

Third generation smart product with the ability to adjust the speed limit of your electric bike.

The SpeedBox 3.2 B.Tuning tuning product allows arbitrary configuration of electric speed limiters. After installing the tuning, you will be able to view actual values like maximum speed, average speed, daily mileage, and range. With the SpeedBox app, you can track and record all your ride parameters on your phone's screen. Anytime and anywhere.

How does SpeedBox 3.2 B.Tuning work?

You can activate it via the mobile app or on your electric bike's screen. After pressing the LIGHT button or + - + -, the screen will briefly show 99 km/h (62 mph) and from that moment, you will no longer be limited.

To turn off the tuning, press the LIGHT button or + - + - again. The screen will display 25 km/h (16 mph) and the speed limit of 25 km/h will be reinstated. The electric bike will operate as it did before the tuning was installed.

We are also ready for electric bikes that do not have a standard control panel with the LIGHT button. In this case, simply use the + - + - button combination and SpeedBox will activate. It can be deactivated in the same way.

To set the maximum speed, you can go three levels down, then three levels up. Then, the current speed limit will be displayed. To change the maximum speed, briefly press the LIGHT button or rotate the dial 360°. The last displayed limit is saved after five seconds of inactivity.

SpeedBox app for SpeedBox 3.2 B.Tuning

The SpeedBox app specifically designed for SpeedBox 3.2 B.Tuning uses Bluetooth technology to connect your electric bike to your mobile phone. After downloading the app and connecting your phone to the bike, you can view the current data and riding parameters on your phone's screen. This way, you can save information about all your rides, compare with friends, and track your own performance. You will fully enjoy the ride and be able to check the parameters later.

Features of the SpeedBox app:

Tuning control

Save and view ride data

Speed limit adjustment

Hidden tuning function

Motor lock

Motor diagnostics

The operation of SpeedBox 3.2 B.Tuning is not dependent on the use of the SpeedBox App. However, it is an excellent accessory that gives you a complete overview of your performance.

Download the SpeedBox App on your phone before requesting the SpeedBox 3.2 B.Tuning. You will test the demo version, get to know all the features, and at the same time, ensure that the app works perfectly on your phone. To connect to the SpeedBox 3.2 B.Tuning chip, your phone must have Bluetooth version 4.0 or higher.

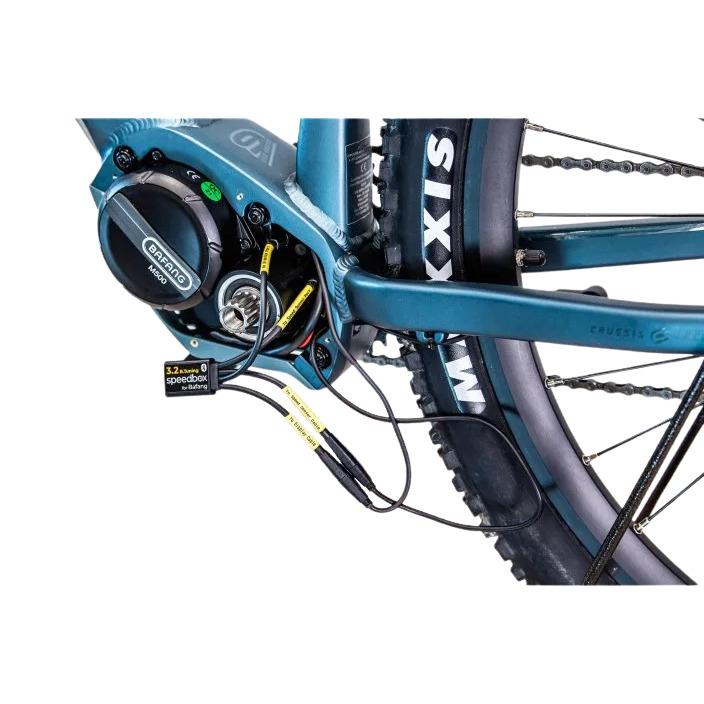

Installation

To connect the SpeedBox chip to an electric bike, we use colour-coded connectors fitted with a key for proper connection, making the chip really easy to install. You can download the instructions or watch videos that will guide you in installing SpeedBox. Removing the SpeedBox is just as easy as installing it. If you have a connection issue, feel free to contact us.

If you want SpeedBox on a new bike, you must first ride at least 1 kilometre on the bike.
