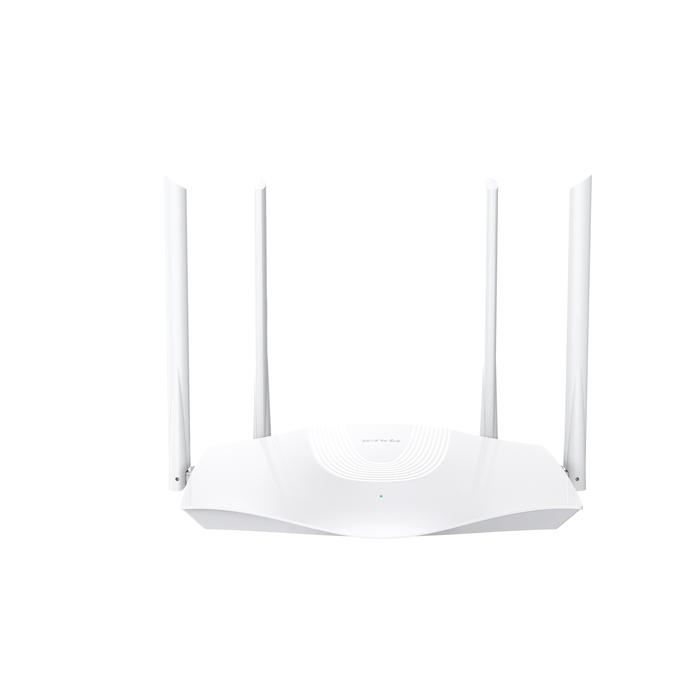

6tx3 dual-band wifi router 1800 Mbps

General specifications

• Sustainability certificates: CE, RoHS

Connectivity

• DC input: Yes
• Number of port ethernet LAN (RJ-45) : 4
• Port USB: No
• Memory card slot(s) : No

Weight and dimensions

• Width: 237.6 mm
• Thickness: 153.1 mm
• Height: 45 mm

Power

• AC input voltage: 100 - 240 V
• AC input frequency: 50/60 Hz
• Output voltage: 12 V
• Output current : 1 A
• Power source type : Mains

Environmental conditions

• Operating temperature : 0 - 40 °C
• Non-operating temperature : -40 - 70 °C
• Operating humidity : 10 - 90% relative humidity (storage)
• Relative humidity (storage): 5 - 90%.

Protocols

• DHCP client: Yes
• DHCP server: Yes
• Automatic recognition of computer components: Yes

Network(x)

• Ethernet LAN: data transfer rate: 10,100,1000 Mbit/s
• Redirection of port: Yes
• Cabling technology : 10/100/1000Base-T(X)
• Static route : Yes
• Dynamic DNS (DDNS) : Yes
• Network standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
• Ethernet/LAN: Yes
• Ethernet LAN interface type: Gigabit Ethernet

Included in box

• AC adapter included: Yes
• Cables included: LAN (RJ-45)
• Packaging type: Box
• Installation guide rapide: Yes

Security

• DMZ support: Yes
• Supported security algorithms: WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
• Guest access: Yes
• URL filtering : Yes
• IP address filtering: Yes
• Denial of service (DoS) attack prevention: Yes
• Filtering: Yes
• Access Control List (ACL): Yes
• Parental control: Yes

Wireless LAN features

• WLAN data transfer rate (main band): 574 Mbps
• WLAN data transfer rate (second band): 1201 Mbit/s
• Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
• Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
• WLAN data transfer rate (max): 1775 Mbps
• Wi-Fi standard: Wi-Fi 6 (802.11ax)

Additional information

• Web-based management: Yes
• Reset button: Yes
• Security pair WPS control button: Yes
• Web-based configuration wizard: Yes
• Bandwidth control : Yes
• MU- MIMO (multiple input, multiple output) technology : Yes

Antenna

• Antenna gain level (max): 6 dBi
• Number of antennas: 4
• Transmission power: 20 - 23 dBmW
• Antenna design: External

Design

• Indicators : System
• Finish: Plastic
• Product color : White
• Product type : Router

mobile networks

• 3G : No
• 4G : No
• Mobile network generation : 4G

Features

• Certification: CE/FCC/RoHS
• Integrated in processor: Yes
• Processor frequency: 1500 MHz
• Number of processor cores: 4
• Plug and Play: Yes

Logistic data

• Harmonized system code: 85176990

WAN connection

• WAN connection type: RJ-45
• DSL WAN: No
• Ethernet WAN: Yes
• SIM card slot: No
• USB 3G/4G modem compatibility: No
