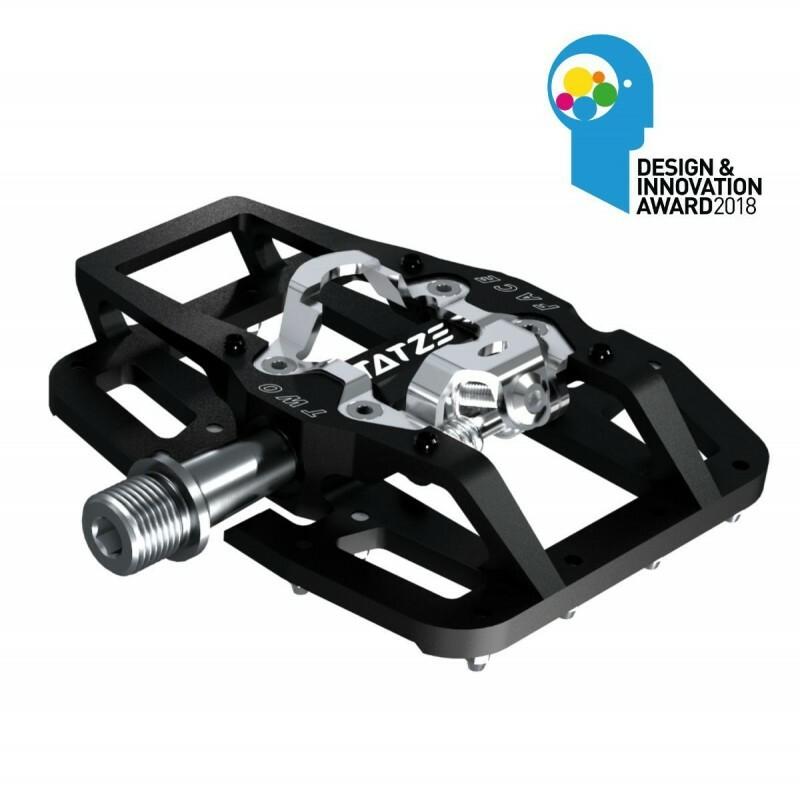

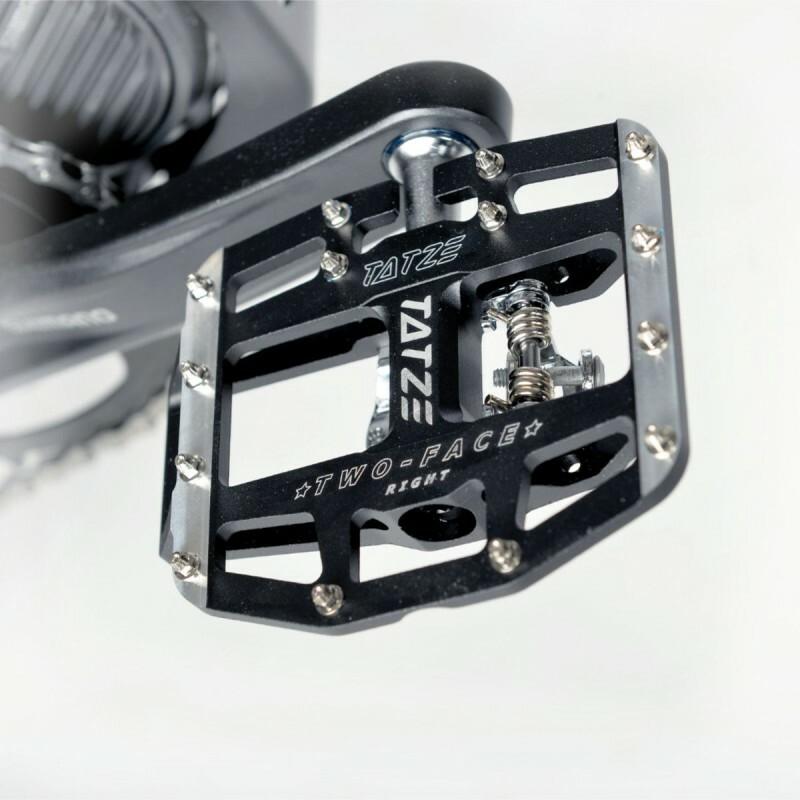

Pedal Two Face

For optimized ground clearance, the flat side is turned by 2.5° towards the click side, which increases the ground clearance at crucial points by 5 mm.

A defined choice of sides is particularly important with a combination pedal. The TWO-FACE has a neutral weight distribution so that the pedal does not rotate automatically when the foot is removed from the pedal. The same page/function is available again the next time it appears.

Thanks to the selection of the highest quality materials and manufacturing processes, the TWO-FACE is extremely robust.

The specifications at a glance:

• Flat page with 14 pins (W: 100 mm L: 105 mm H: 18.5 mm)
• Click side with 4 pins (W: 60 mm L: 98 mm H: 18.5 mm)
• Pedal body: Alu 6061-T6
• Axle: Cr-Mo hardened and coated (upgrade to titanium version)
• Storage: needle bearings + rigid ball bearings
• Joint: sealed double needle bearing + end cap
• SPD compatible
• Weight: 435g
• Developed and tested in Tyrol / Austria
